[gradsusr] Please help me with grads! "Lateral space"?

[giacomo tricarico]

Hi Jeff, really thanks for answering!
I have a 800x618 pixel default gif image, how could I exactly use the set parea or vpage command? How would you add this space to the left of the coordinates and to the right of the legend using one of those commands?

Thanks again,Giacomo

Date: Mon, 7 Sep 2015 16:44:49 -0500
From: jeffduda319 at gmail.com
To: gradsusr at gradsusr.org
Subject: Re: [gradsusr] Please help me with grads! "Lateral space"?

use either 'set parea' or 'set vpage' to set the limits on the plotting area within the real page or the area of the virtual page within the real page. I think the Grads staff recommends 'set vpage', but I personally prefer 'set parea' since I can play around with the frame border to get what I want with parea, whereas with 'set vpage' you don't have explicit control over the frame itself.

Jeff Duda

On Mon, Sep 7, 2015 at 4:40 PM, giacomo tricarico <mino-98 at hotmail.it> wrote:

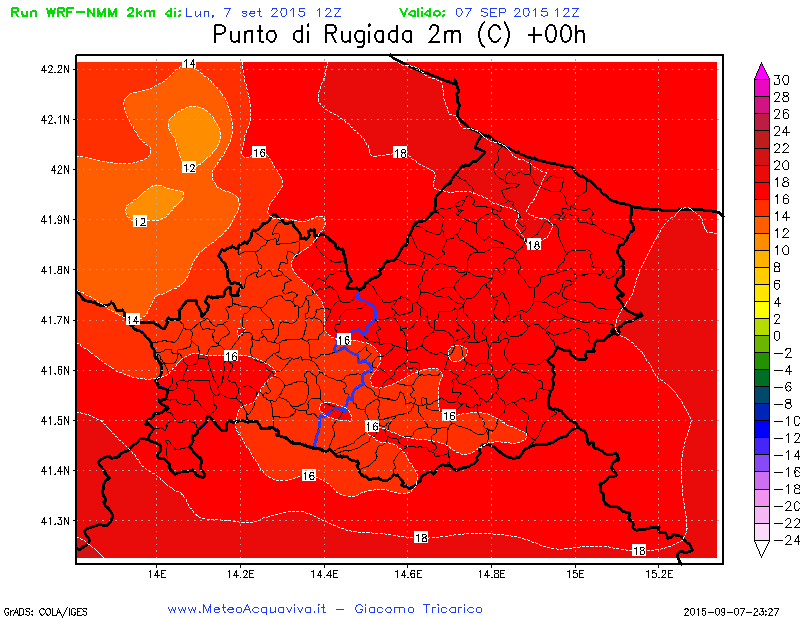

Hi everybody, I have a little problem. Here is my grads generated gif image:
http://www.meteoacquaviva.it/increase.gif
How could I increase the "lateral" space? As you can see the -16, -20 values are for example "cut": I would just like the coloured map to have more space to its left (adding space to the left of the latitude coordinates) and right (next to the legend).
I have also tried with printim namefile.gif xXXX yXXX, but it's the same, the whole gif image is just bigger, but no lateral space.
Thanks all,Giacomo

_______________________________________________

gradsusr mailing list

gradsusr at gradsusr.org

http://gradsusr.org/mailman/listinfo/gradsusr




--
Jeff Duda
Graduate research assistant
University of Oklahoma School of Meteorology
Center for Analysis and Prediction of Storms
